Trust your Shop Detailing to our Highly Experienced Team
iCube Engineering offers professional structural steel estimation and detailing services to a global client base.
Trust your Shop Detailing to our Highly Experienced Team
iCube Detailing offers professional structural steel estimation and detailing services to US and Canada based clients.
RESIDENTIAL
COMMERCIAL
INDUSTRIAL
HIGHRISE
About Us
Expertise You Can Trust
iCube Detailing is renowned for its precision, exceptional customer service, and roaster of delighted clients.
Our team’s extensive background includes:
- Detail-oriented approach with zero compromise on accuracy.
- Reduced RFIs and rework through coordinated drawings.
- Fast turnaround without sacrificing quality.
- Scalable support for small to large projects.
- Clear communication with engineers and fabricators.
13 Years of Industrial Experience
Our engineering team is our greatest asset, and we work seamlessly with our clients as one unified team to ensure every job is completed to the highest standard. When you partner with us, you choose an engineering team committed to delivering results.
Structural Steel
Detailing
Our expert miscellaneous steel detailing team handles stairs, ladders, gratings, gates, and custom fabrications with precision, ensuring code compliance and cost-effective solutions.
Misc Steel
Detailing
Accurate fabrication and erection drawings, material reports, NC files, DXF files, and model exports for seamless procurement, fabrication, and installation.
Connection
Design
Efficient and experienced connection design to reduce costs in the shop and save time in the field.
Estimation / Quantity Take off
Precise quantity takeoffs and estimates by qualified teams, with KSS/XML exports for accurate bids and winning projects.

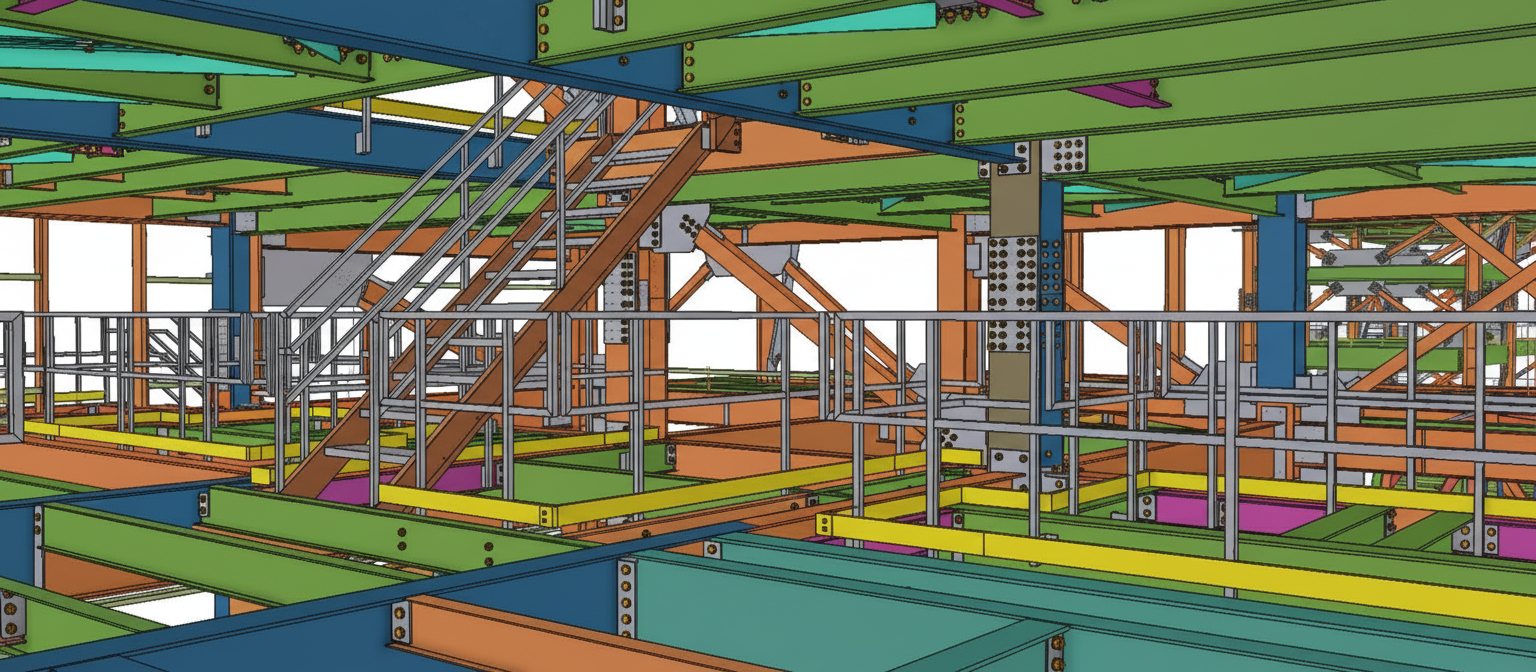

Shop-Focused BIM Package
From BIM model to machine files and reports — our steel detailing firm delivers BIM-ready drawings and exports built to match US & Canada fabrication standards and tested for accuracy, speed, and integration with your workflow and equipment.
Shop Drawings
PDF and DWG
Erection Drawings
PDF and DWG
Model
IFC, DWG (other formats available)
NC Files
DSTV NC1 for all pieces
DXF Files
For plates with tooling layers
Material List
PDF and Excel
Assembly List
PDF and Excel
STEP Files
For 3D exchange and fabrication
MIS / KSS Files
For MIS software
Bolt List
PDF and Excel

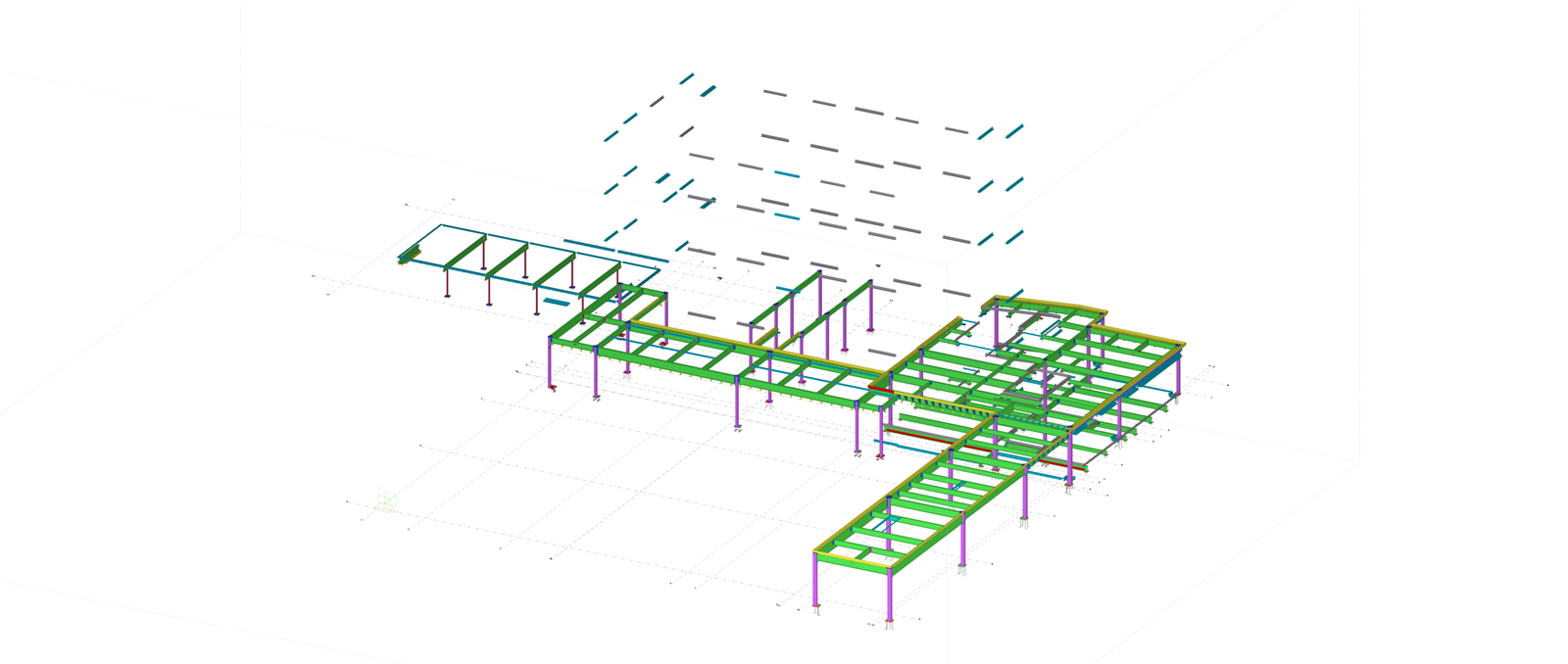

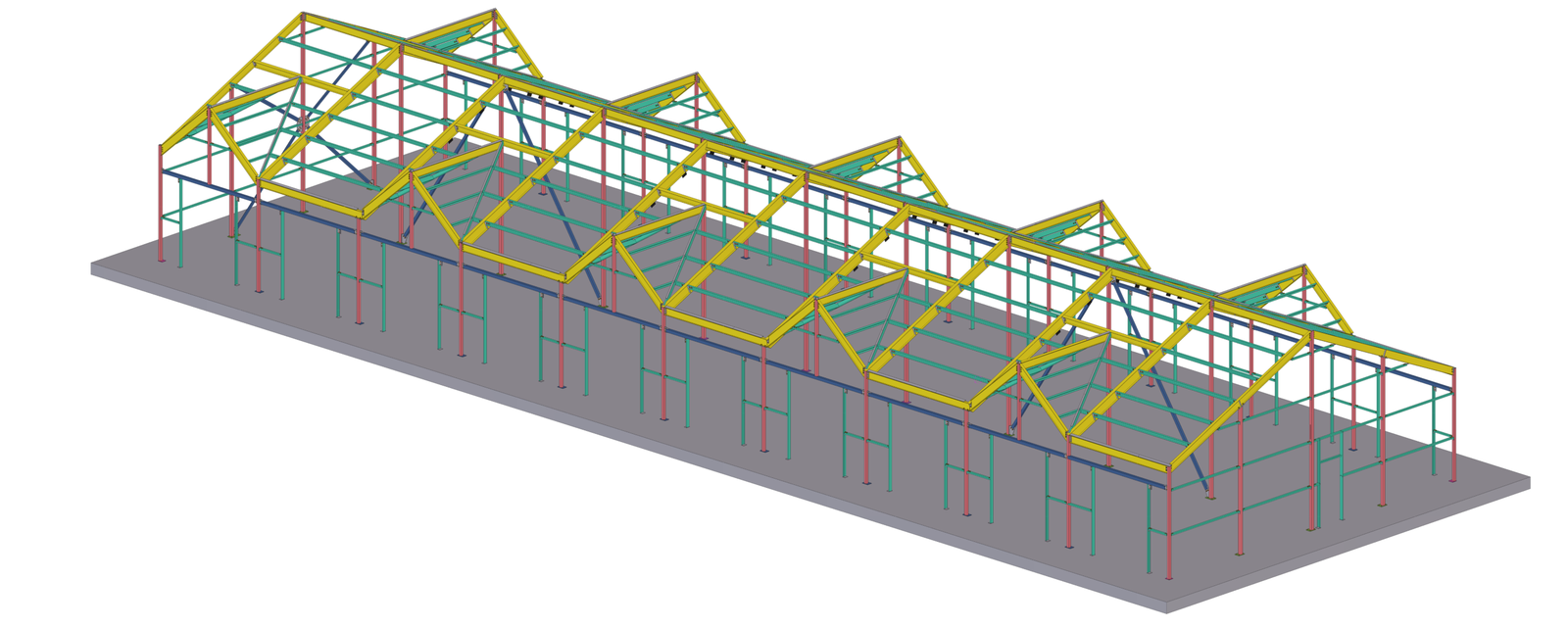

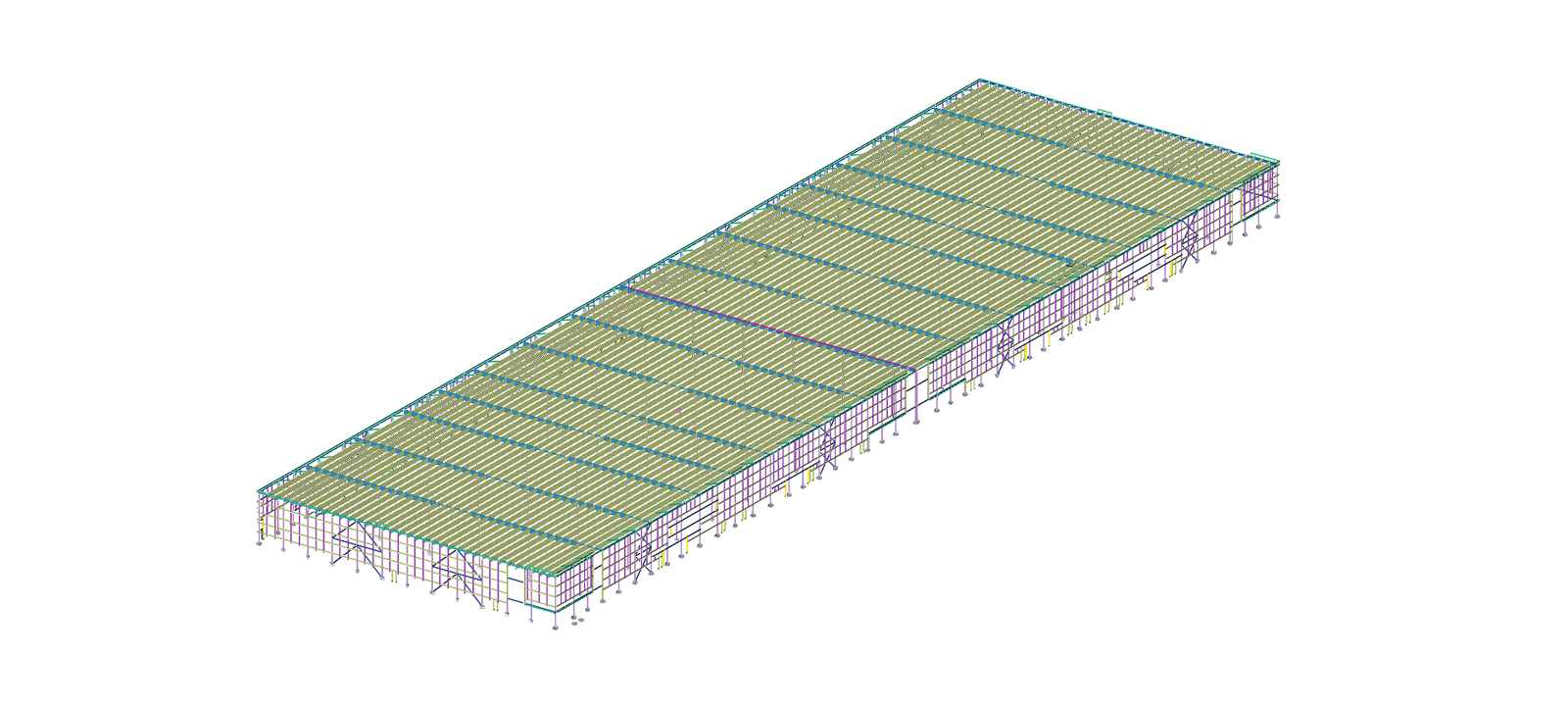

Our Projects

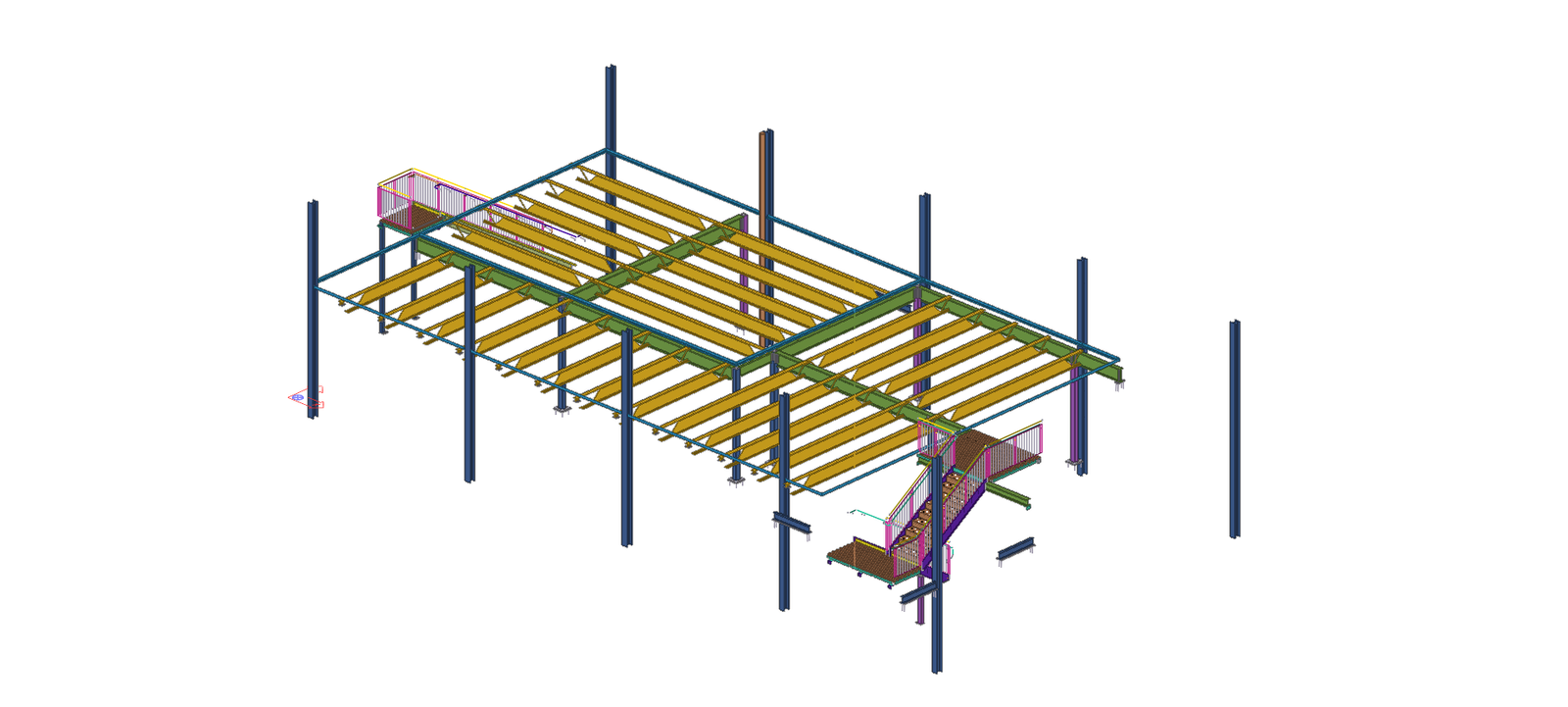

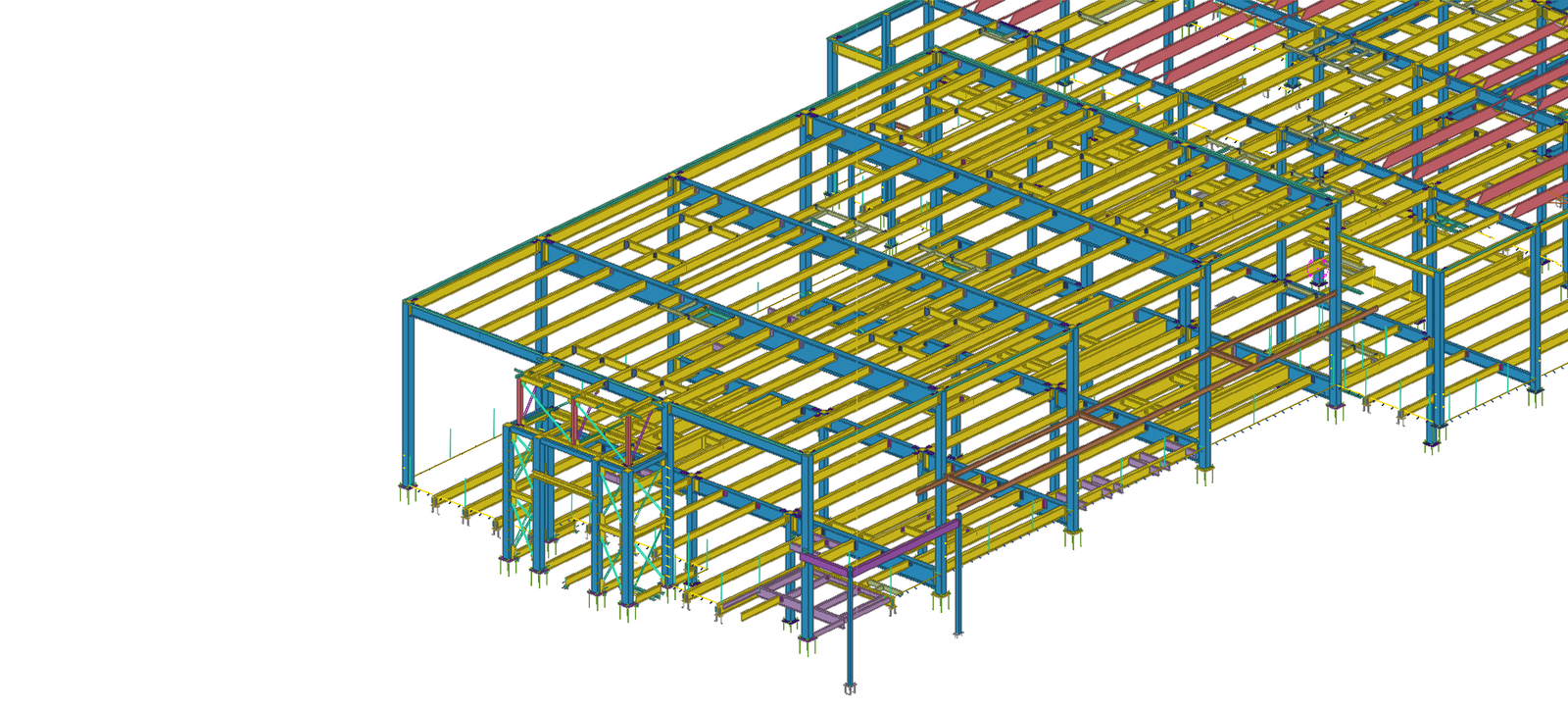

Steel manufacturing drawing
Project - 1

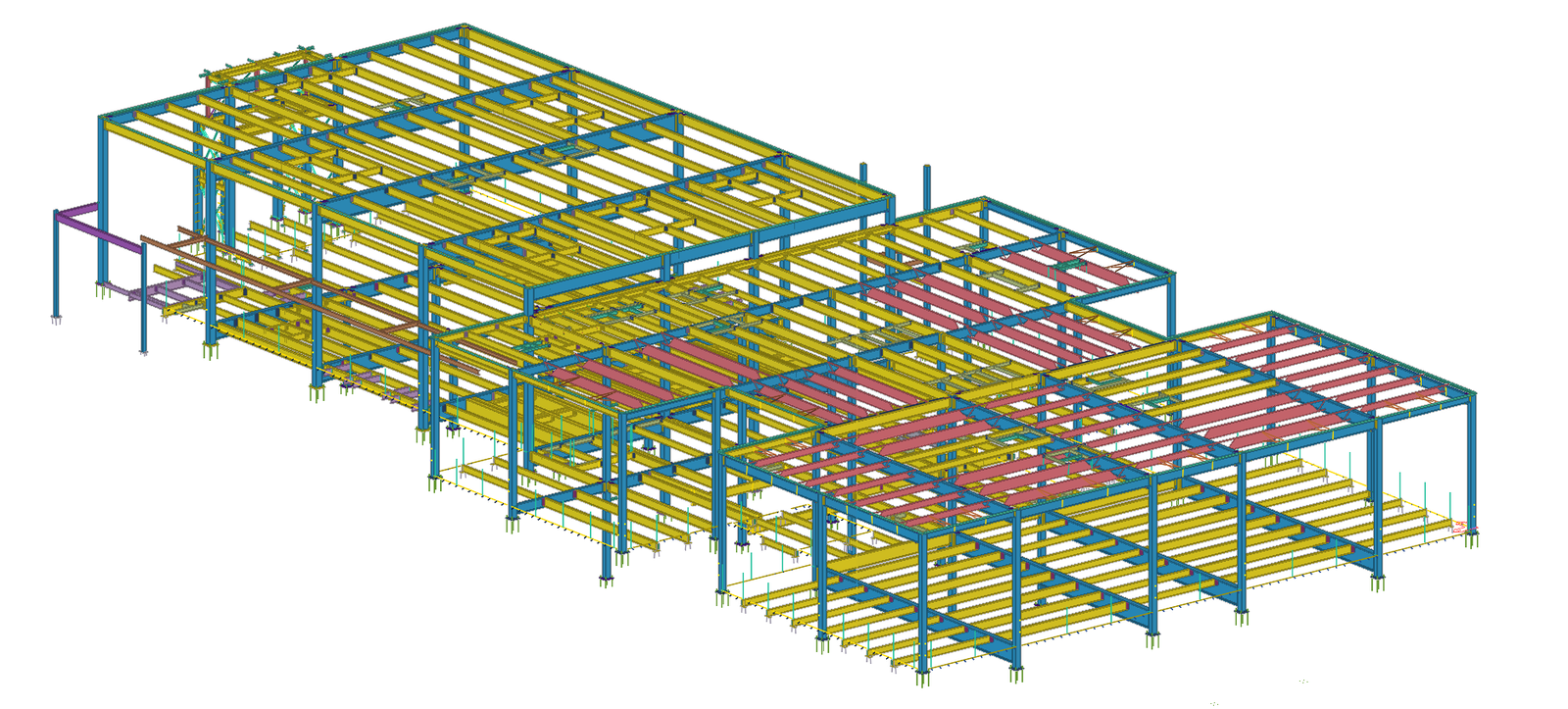

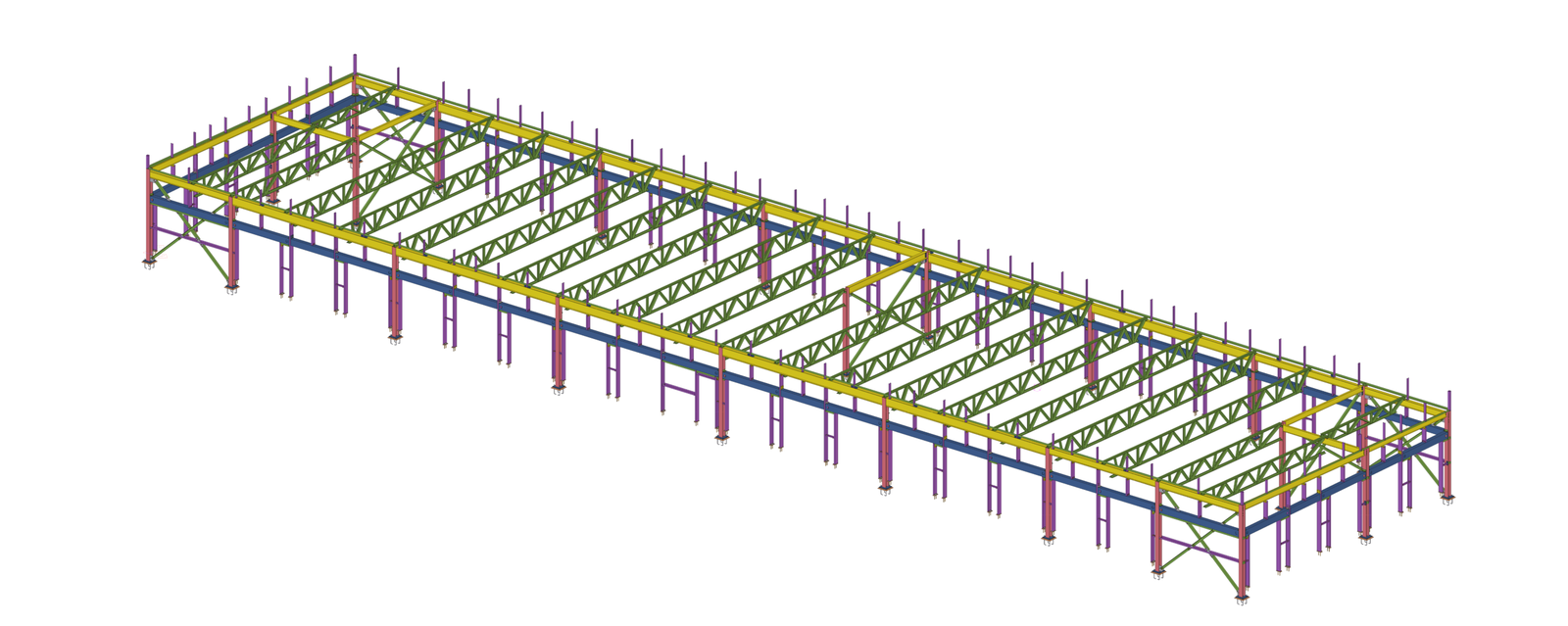

Steel manufacturing drawing
Project - 2

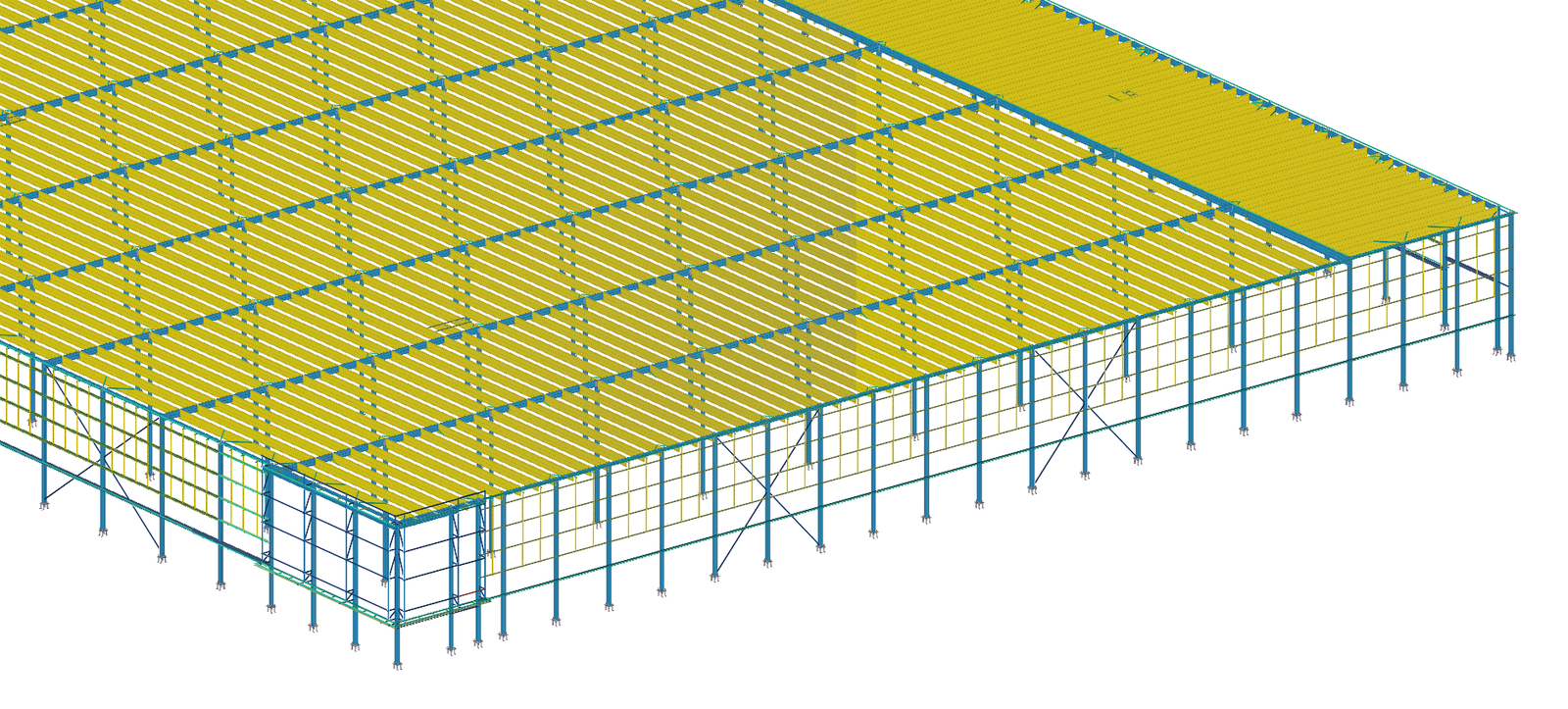

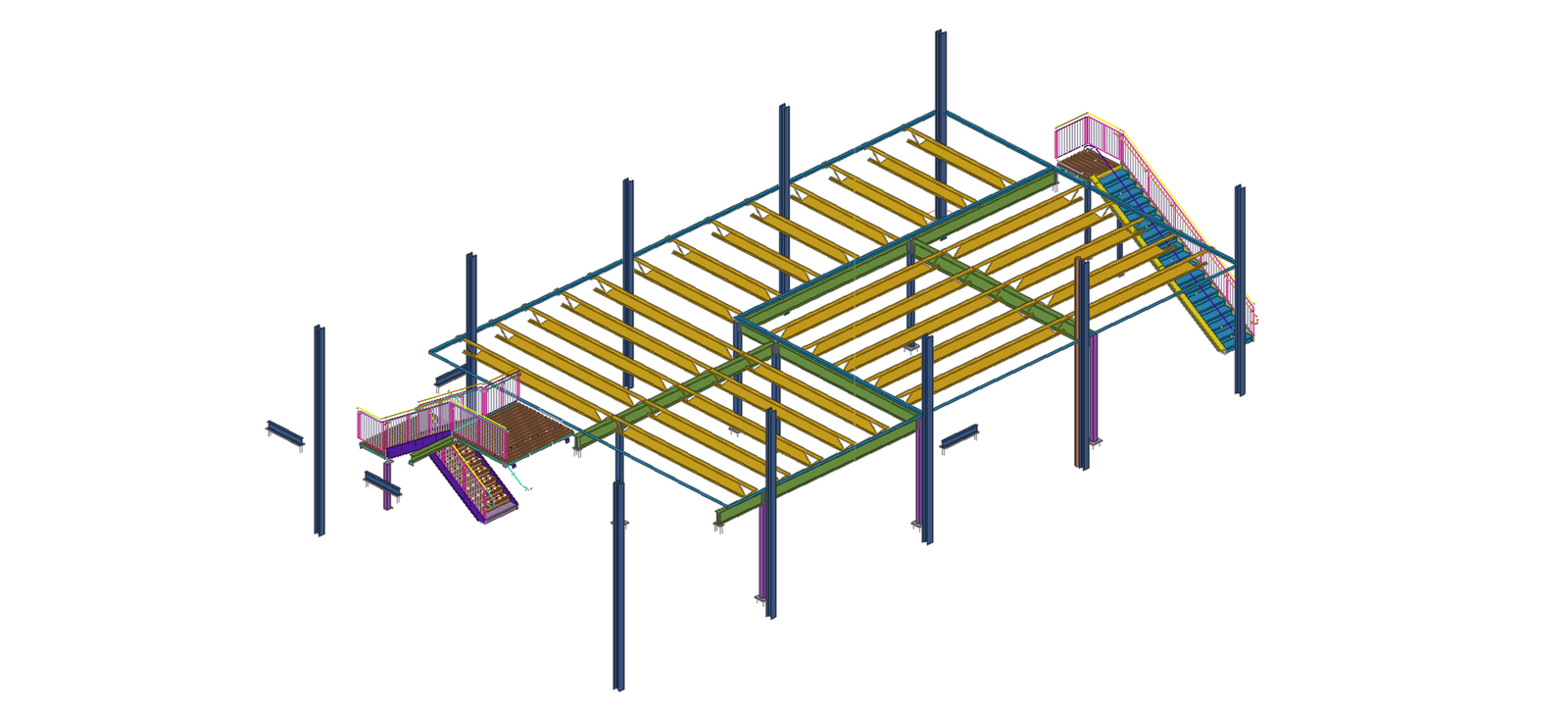

Steel manufacturing drawing
Project - 3

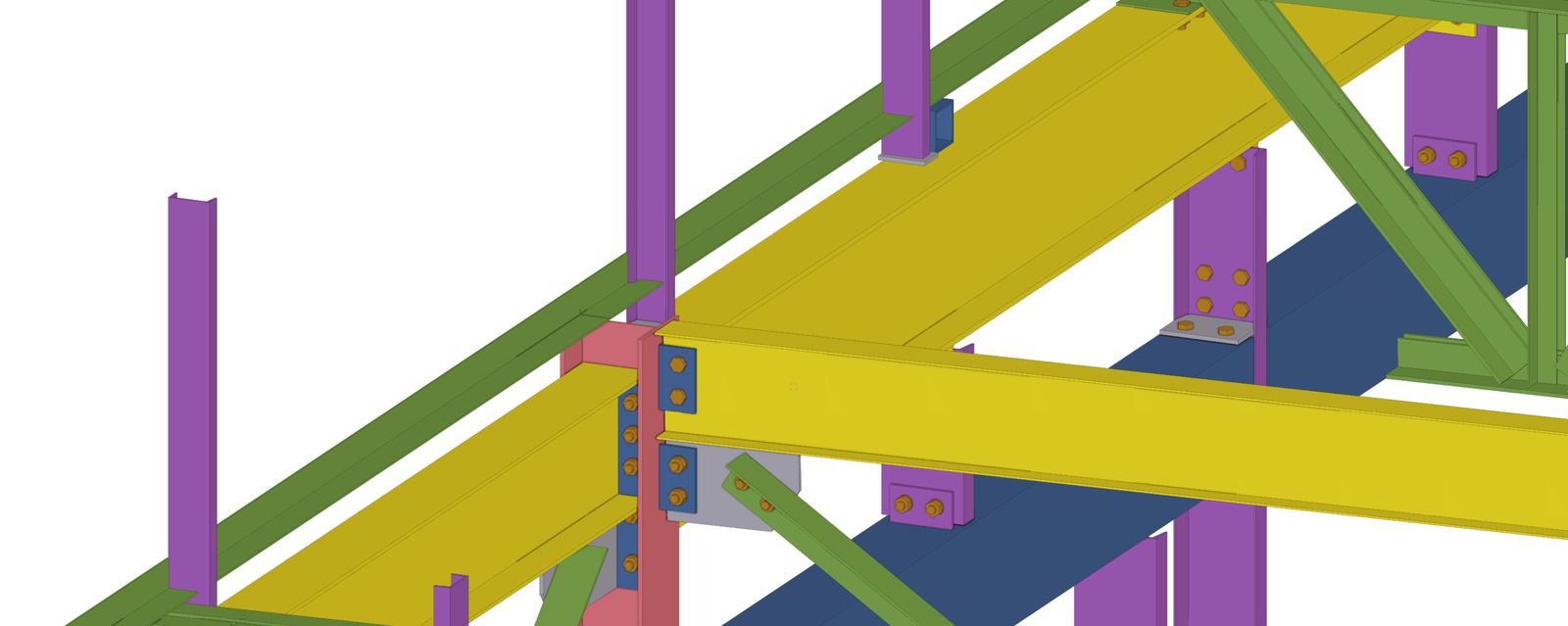

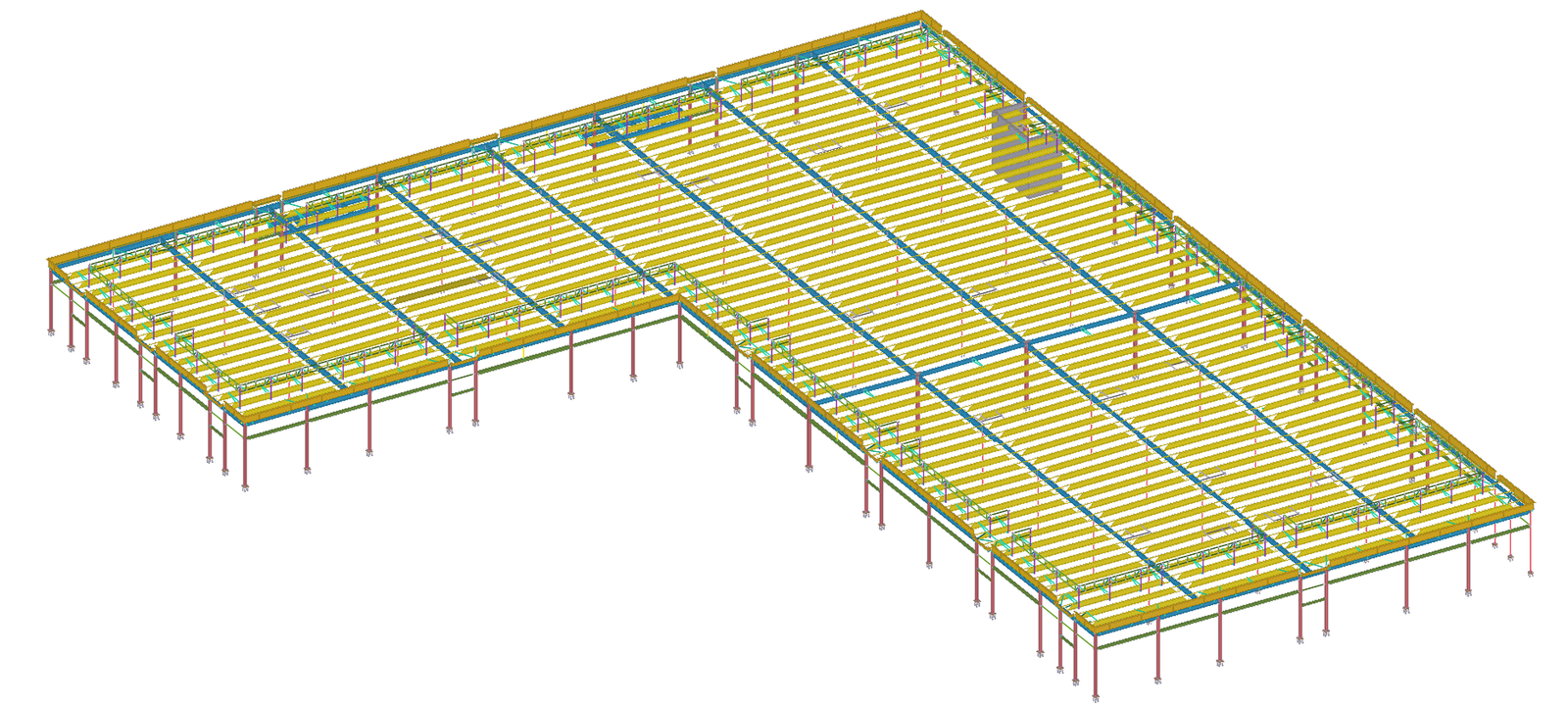

Steel manufacturing drawing
Project - 4

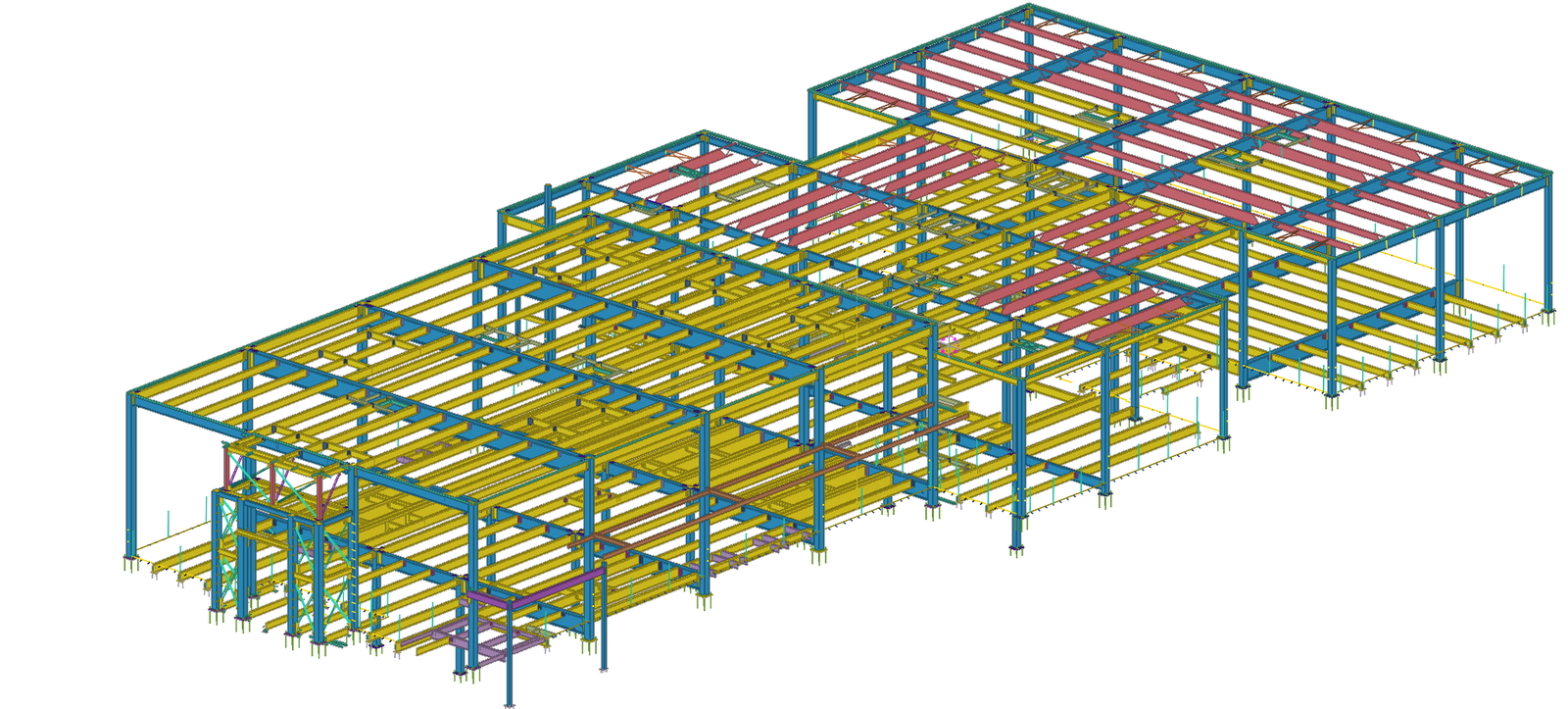

Steel manufacturing drawing
Project - 5

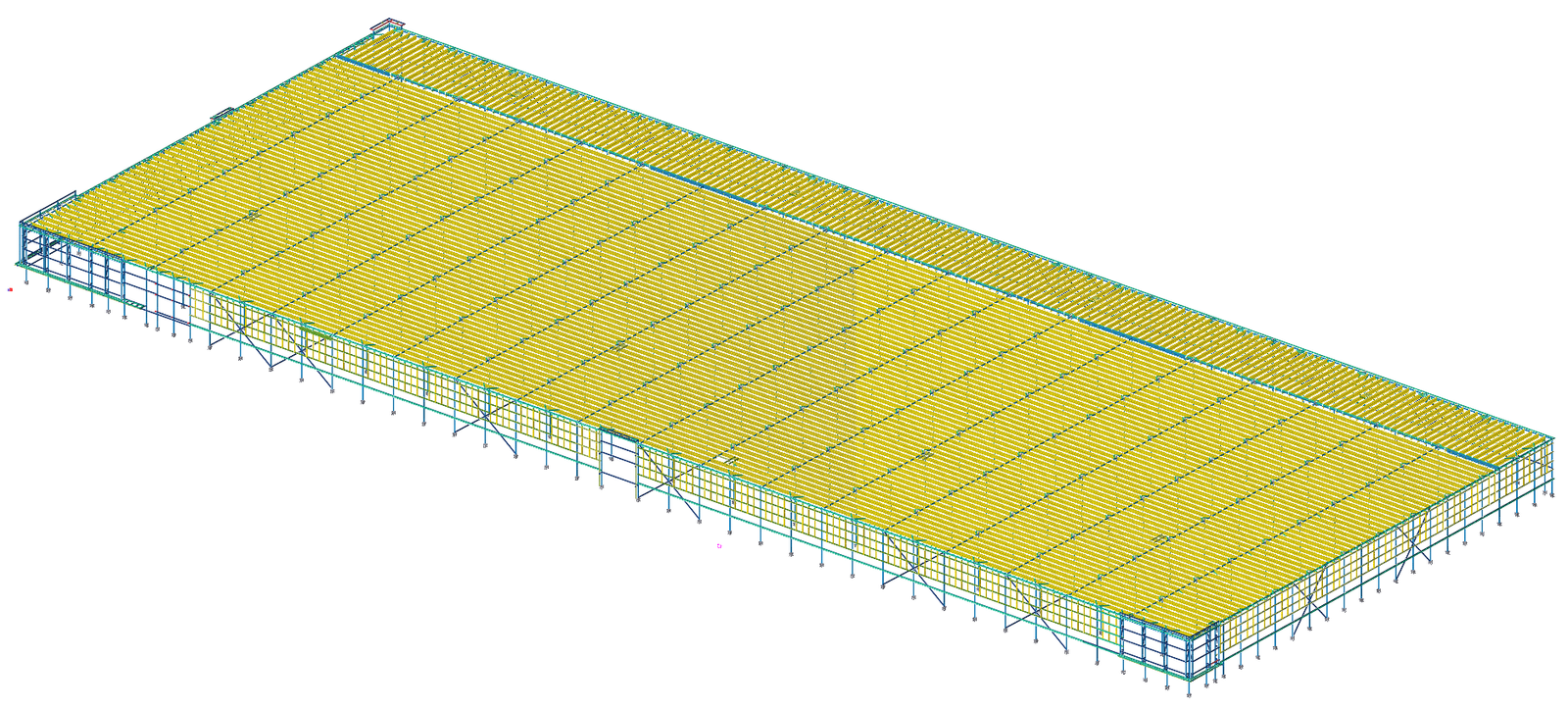

Steel manufacturing drawing
Project - 6

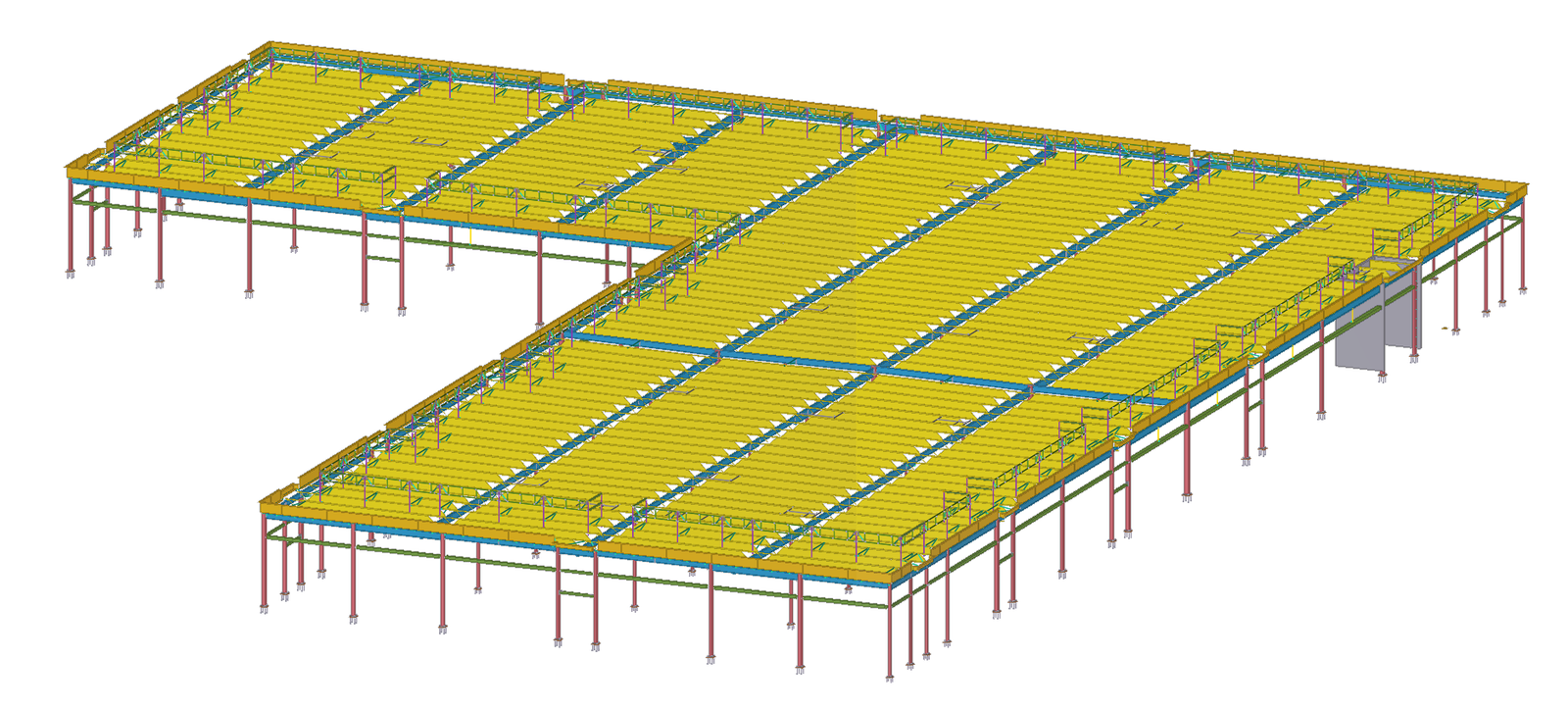

Steel manufacturing drawing
Project - 7

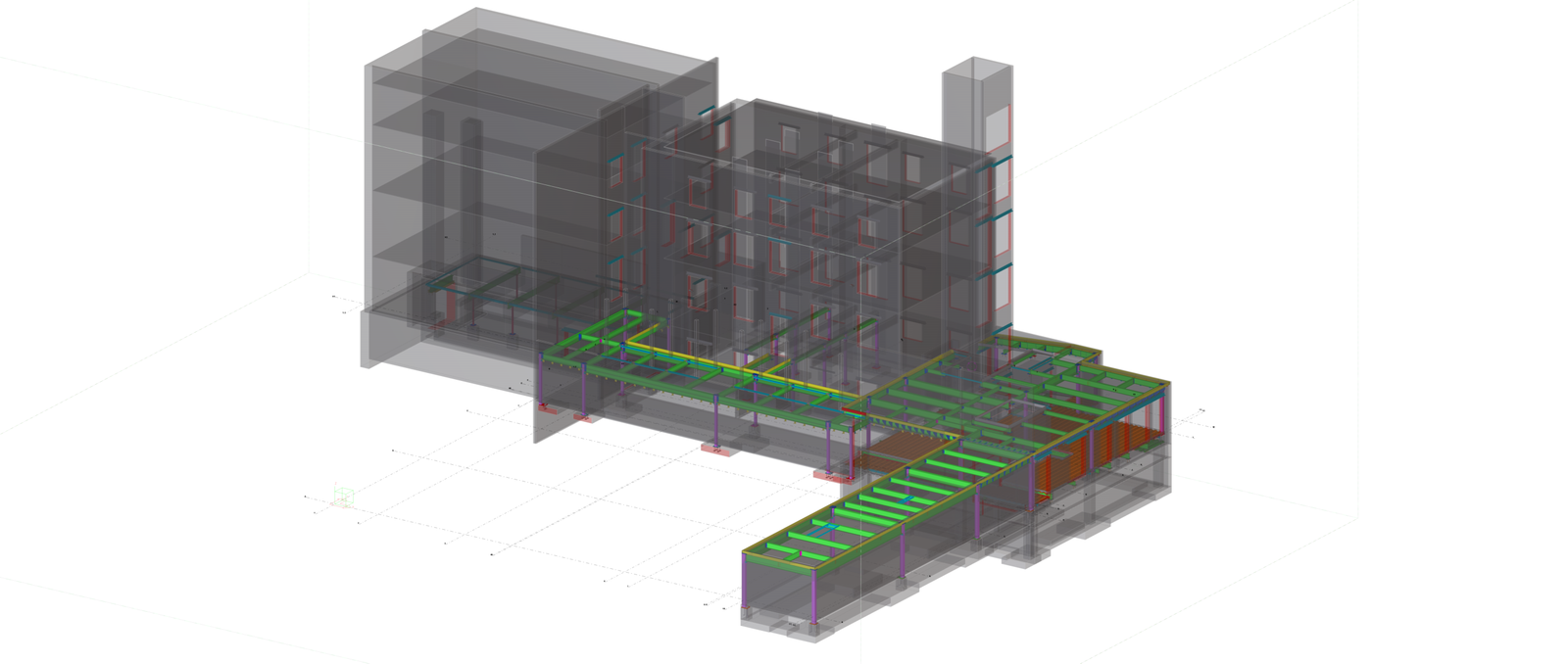

Steel manufacturing drawing
Project - 8
Why Choose Us
We Are a Team of Highly Professional Specialists
At iCube Detailing, we view steel detailing as more than just placing elements in models or drawings. It’s the art of crafting intelligent instructions that guide procurement, fabrication, and erection. Our detailers ensure every component fits perfectly, aligns with design intent, and prioritizes safety in the structures we bring to life.
Project Planning:
Built on precision, structure, and early risk control.
• Structured project kick-off meetings.
• Early RFIs to eliminate design ambiguities.
• Pre-detailing checklists to reduce revisions.
• 3D model reviews for constructability and clash detection.
Communication:
Clear, consistent coordination throughout the project.
• Weekly project progress updates.
• Same-day responses to technical inquiries.
• Ongoing coordination with engineers and fabricators.
Industry-Compliant Standards:
Quality-driven detailing that meets industry requirements.
• Full compliance with AISC and CISC standards.
• We follow client standards specific to the project.
• Accuracy-focused output with strict quality control.
Time:
Fast delivery without sacrificing accuracy or quality.
• Industry-leading turnaround times.
• On-time drawing submissions and approvals.
• Efficient workflows for demanding schedules.
Contact Us
Looking for Better detailing solutions?
Reach out to our structural and miscellaneous steel detailing specialists to help your next project meet deadlines with greater quality and efficiency.
iCube Detailing provides high-quality structural steel and miscellaneous steel estimation and detailing services to general contractors, fabricators, and engineers across the US and Canada.
